Assessing the effectiveness and cost effectiveness of subcutaneous nerve stimulation in patients with predominant back pain due to failed back surgery syndrome (SubQStim study): study protocol for a multicenter randomized controlled trial



Chronic radicular pain can be effectively treated with spinal cord stimulation, but this therapy is not always sufficient for chronic back pain. Subcutaneous nerve stimulation (SQS) refers to the placement of percutaneous leads in the subcutaneous tissue within the area of pain. Case series data show that failed back surgery syndrome (FBSS) patients experience clinically important levels of pain relief following SQS and may also reduce their levels of analgesic therapy and experience functional well-being. However, to date, there is no randomized controlled trial evidence to support the use of SQS in FBSS.


The SubQStim study is a multicenter randomized controlled trial comparing SQS plus optimized medical management (‘SQS arm’) versus optimized medical management alone (‘OMM arm’) in patients with predominant back pain due to FBSS. Up to 400 patients will be recruited from approximately 33 centers in Europe and Australia and will be randomized 1:1 to the SQS or OMM arms. After 9 months, patients who fail to reach the primary outcome will be allowed to switch treatments. Patients will be evaluated at baseline (prior to randomization) and at 1, 3, 6, 9, 12, 18, 24, and 36 months after randomization. The primary outcome is the proportion of patients at 9 months with a ≥50% reduction in back pain intensity compared to baseline. The secondary outcomes are: back and leg pain intensity score, functional disability, health-related quality of life, patient satisfaction, patient global impression of change, healthcare resource utilization/costs, cost-effectiveness analysis and adverse events. Outcomes arms will be compared between SQS and OMM arms at all evaluation points up to and including 9 months. After the 9-month assessment visit, the main analytic focus will be to compare within patient changes in outcomes relative to baseline.


The SubQStim trial began patient recruitment in November 2012. Recruitment is expected to close in late 2014.

Trial registration NCT01711619

Peer Review reports


Chronic back and leg pain (CBLP) is a diffusely defined group of pain conditions, ranging from chronic low back (‘axial’) pain to persisting hip, buttock and leg (‘radicular’) pain and often consists of a combination of both [1]. It is estimated that 10% to 40% of patients who have undergone lumbar spine surgery still experience CBLP: the so-called ‘failed back surgery syndrome’ (FBSS). CBLP and FBSS can be very difficult to manage for patients and clinicians and is associated with substantive negative impact on a patient’s health-related quality and well-being [2, 3]. Furthermore, the management of CBLP places a high economic burden on both healthcare systems and society [4].

Greater success has been reported in the treatment of patients with CBLP and FBSS that present with radicular (or leg) pain rather than with axial (or low back) pain [5, 6]. Randomized controlled trials (RCTs) have shown spinal cord stimulation to be a clinically effective adjunct to medical management and an alternative to a further operation in FBSS [7, 8]. However, these studies have been limited to individuals who presented with predominant leg pain, excluding those with a chief issue of axial pain exceeding radicular pain. Other therapies have been applied to FBSS presenting as predominant back pain including peripheral neuromodulation.

Peripheral neuromodulation includes two distinct technical approaches: the lead can be placed percutaneously or via an open surgical technique. Peripheral nerve stimulation (PNS) utilizing an open surgical technique was first reported in 1967 [9]. This technique involves the use of a device to provide stimulation to a single peripheral nerve, with the goal of producing stimulation-induced paresthesia and relief of pain within the sensory distribution of that nerve [9, 10]. Subcutaneous stimulation (SQS) (also known as ‘peripheral nerve field stimulation’ or ‘regional field stimulation’ or ‘target field stimulation’), a more recent advance in neuromodulation, targets not a single nerve, but rather the area of pain perception itself. In SQS, percutaneous leads are placed in the subcutaneous tissue within the area of pain perception. The mechanism of SQS-mediated paresthesia remains to be fully elucidated. However, it is thought that its effect arises from the creation of an electrical field that results in decreased nociceptive input which may impact on local blood flow, block cell membrane depolarization, and/or alter neurotransmitter release and reuptake, thus altering nociceptive information as it is transmitted to the central nervous system [11].

The remainder of this paper focuses on SQS.

Systematic review

To the best of our knowledge, no previous systematic review of SQS for CBLP or FBSS has been published. We, therefore, undertook a comprehensive search of a number of electronic databases including MEDLINE, EMBASE and the Cochrane Library. Our search included a combination of Medical Subject Headings that included: ‘failed back surgery syndrome’, OR ‘back pain’ OR ‘chronic leg pain’ OR ‘post laminectomy’ AND ‘peripheral nerve stimulation’ OR ‘electric stimulation’ OR ‘subcutaneous stimulation’. Issues of ‘Neuromodulation’ were hand searched and the reference list checked from the Medtronic dossier of evidence of peripheral nerve stimulation that was submitted to the TuV in 2011 for purposes of obtaining Conformité Européenne (CE) Mark for percutaneous PNS [unpublished results].

The study selection process is shown in Additional file 1: Figure S1. Our searches identified 1,030 citations up to June 2012. Following exclusions (that is, non-English publications, hybrid SQS and spinal cord stimulation (SCS) systems, non-CBLP or FBSS indications, case reports and studies published only as abstracts) we identified eight studies (nine publications) that reported efficacy and device-related complication outcomes with SQS (see Table 1) [1220]. Study selection, data extraction and quality assessment was undertaken by a single author and then checked for accuracy by a second.

Table 1 Systematic review: summary of characteristics of included studies

All included studies employed a case series design (that is, reported outcomes in a cohort of patients before and after SQS and no control group) and included a total of 191 patients with CBLP implanted with SQS, of which a proportion of patients experienced CBLP following lumbar surgery, that is, FBSS. Although the precise location of pain was often not clearly stated, studies appear to recruit patients specifically with a back component of pain. Only one study explicitly stated that they included individuals with both back and leg pain [20]. Studies assessed outcomes before and after SQS implantation, with follow-up ranging from 3 to 12 months.

The quality of included studies was assessed on the basis of the following five criteria: (1) prospective design, (2) consecutive or random sampling, (3) explicit statement of inclusion/exclusion criteria, (4) independent outcome assessment and (5) clear statement of loss to follow-up/withdrawals [21]. Details of study methodology were generally poorly reported and limited our ability to assess study quality. A table summarizing quality assessment is provided as Additional file 1: Table S1.

Studies consistently reported that patients experienced pain relief following SQS implantation (see Table 2). Across the 6 studies reporting pain visual analog scale (VAS) values, the average baseline score varied from 6.8 to 9.1 (on a 10-point scale) [1316, 18, 20]. Following SQS, the reduction in mean VAS ranged from 4.2 to 1.7. Five studies also reported improvements in the level of analgesia medication, [14, 1720] and three reported improvements in functional capacity compared to before SQS [13, 16, 18].

Table 2 Systematic review: summary of efficacy results

Complications were inconsistently reported across studies. Across the 3 studies reporting data, a total of 41 out of 224 (18%) patients experienced 1 or more device-related complication [14, 18, 19]. Risks of specific complications were as follows: lead migration, 19/245 (8%, 5 studies [14, 1619]); other lead complications (for example, fracture), 10/211 (5%, 2 studies [14, 19]); hardware erosion, 0/13 (0%, 1 study [10]); infection, 9/258 (3.5%, 6 studies [12, 14, 1720]); and device migration 1/113 (<1%, 2 studies [12, 19]).

In summary, our systematic review identified a growing body of international prospective and retrospective case series data showing that CBLP and FBSS patients experience pain relief following SQS, a reduction in their analgesic therapy and an improvement in functional well-being over the short to medium term. The reduction in pain observed across studies compares favorably with the clinically important change of two or more units (on a scale of 0 to 10) cited by the IMMPACT (‘Initiative on Methods, Measurement, and Pain Assessment in Clinical Trials’) guidelines on outcome measures for pain trials [21]. Furthermore, SQS appears to be associated with a level of device-related complications similar, or lower, to that seen with spinal cord stimulation [22, 23]. However, given the current absence of level I clinical and economic evidence for SQS, this overview supports the urgent need for a well-conducted RCT and parallel economic evaluation.

Aims and objectives

The SubQStim study is a multicenter RCT comparing the clinical effectiveness of peripheral nerve stimulation utilizing a subcutaneous lead implant technique plus optimized medical management (‘SQS arm’) versus optimal medical management alone (‘OMM arm’). Patients with back pain due to FBSS will be randomized to the SQS or OMM arms. Patients that fail to achieve the primary outcome (that is, ≥50% reduction in back pain intensity) at 9 months post randomization will be allowed to switch treatments. All patients will be followed up for 36 months post randomization.

The primary objective of SubQStim study is to compare the proportion of patients achieving the primary outcome at 9 months post randomization in SQS and OMM arms. Secondary objectives are to: (1) compare the primary outcome between SQS and OMM arms at 3 months and 6 months post randomization; (2) compare secondary outcomes (functional disability, health-related quality of life, patient satisfaction, patient global impression of change, healthcare utilization/costs, use of pain mediation and non-invasive pain treatment) between SQS and OMM arms at 3, 6 and 9 months post randomization; (3) assess the value of trial stimulation in predicting 9-month post-randomization primary outcome response in the SQS arm; (4) assess the trend in device programming parameters up to 9 months post randomization; (5) assess within-patient changes (that is, compared to baseline/prior to randomization) in primary and secondary outcomes from 9 to 36 months post randomization; (6) quantify the level of SQS-related and non-SQS related adverse events at all follow-up timings up to 36 months post randomization.


Design and setting

Patients will be randomized 1:1 to peripheral nerve stimulation utilizing a subcutaneous lead implant technique plus optimized medical management (‘SQS arm’) or optimized medical management alone (‘OMM arm’) and followed for 9 months (period I: randomized comparative period). At 9 months after randomization, if patients in either arm fail to meet certain criteria (see below) they may switch treatment; that is, those in the OMM arm receive SQS or those in the SQS arm have their device turned off and/or explanted. Patients will be followed up until 36 months post randomization (period II: long-term follow-up period). The study design is summarized in Figure 1.

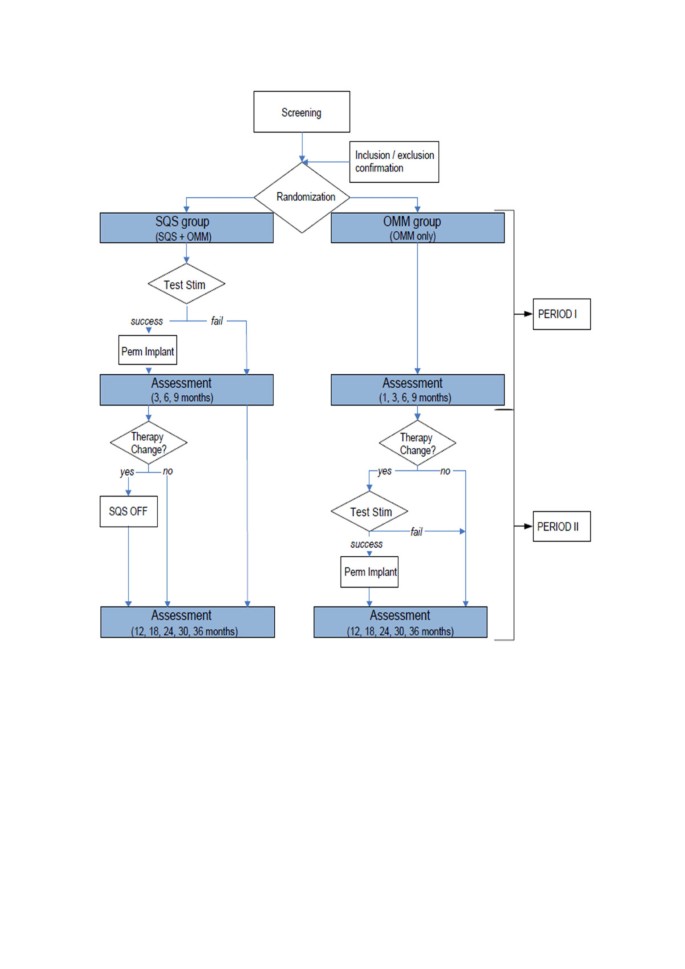

Figure 1

Study design.

The SubQStim study will be conducted in specialized investigational centers. The principal investigator in each site will be experienced in implanting spinal cord stimulation systems and/or SQS systems or specializes in the diagnosis and ongoing treatment of back pain (for example, pain management physician, anesthesiologist, neurosurgeon, and orthopedic surgeon). It is anticipated that approximately 33 centers (30 European site and 3 Australian sites) will participate. No single center can exceed 15% of the total evaluable patients (that is, patients with assessment of the primary outcome).

Selection of patients

The target population is patients experiencing intractable chronic back pain due to FBSS.

At the screening visit, patients will be assessed to determine if they meet all of the inclusion criteria and are, therefore, eligible to participate in the study. Potential patients who meet any of the exclusion criteria will not be eligible to participate in the study.

Inclusion criteria

Inclusion criteria are: signed and dated the Patient Informed Consent/Patient Information Sheet prior to any study-related activities being conducted; ≥18 years of age at time of informed consent; minimum average back pain intensity of ≥50 mm assessed by VAS at screening visit; willing and available to attend visits as scheduled and to comply with the study protocol; willing and able to undergo assessments as part of the evaluation for eligibility and endpoints; willing and able to use the external neurostimulator, recharging equipment (if applicable), and patient programmer per the schedule required by the protocol; diagnosed as having FBSS, that is, has had persistent pain for 6 months following most recent anatomically correct, successful surgery and there are no further therapeutic surgical options available as assessed by appropriate investigation; based on the opinion of the Principal Investigator, patient’s back pain is considered intractable and has been adequately treated, as defined by: failed an appropriate trial of at least three different classes of back pain treatments (pharmaceutical and/or non-pharmaceutical); based on the opinion of the implanting physician, an appropriate implant candidate for the SQS system.

Exclusion criteria

Exclusion criteria are: has been or is being treated with spinal cord stimulation, subcutaneous nerve stimulation, peripheral nerve stimulation or an implantable intrathecal drug delivery system; leg pain score >30 mm assessed by VAS at screening visit; evidence of an active disruptive psychiatric disorder that is significant enough to impact the perception of pain, compliance to intervention and/or ability to evaluate treatment outcome, as determined by the investigator; pain condition unrelated to FBSS that is severe enough to overshadow the FBSS pain in the opinion of the investigator; evidence of a spinal instability or anatomic compression that requires further surgery; spinal fusion at more than three vertebral levels; currently enrolled in or plans to enroll in any concurrent drug and/or device study that may confound the results of this study; allergic or has shown hypersensitivity to any materials of the device system which come in contact with the body; history of coagulation disorder or lupus erythematosus; involved in current litigation regarding back pain.

Patients meeting the inclusion/exclusion criteria will complete a baseline diary questionnaire for 7 days. During the baseline diary, the subject must: (1) report an average back pain score ≥50 mm, (2) report an average leg pain score ≤30 mm, and (3) complete the diary for at least 5 days.


Patients randomized to both arms will have their medical management optimized during the 9-month treatment period, beginning at randomization. Optimized medical management for each subject will be defined by the investigator. Optimized medical management does not include back reoperation or the implantation of medical devices (for example, neurostimulation or intrathecal drug delivery). For example, this may include physiotherapy, transcutaneous electrical nerve stimulation, pharmaceutical treatments or acupuncture.

Patients randomized to the SQS arm will undergo a test stimulation implant and an at-home trialing period. During the trialing period, patients will be programmed according to their optimal programming parameters and will be able to adjust their stimulation via the patient programmer, within the settings programmed by the physician. Prior to the permanent implant, all implanted patients will discuss the trialing period with the principal physician and complete a VAS for both back and leg pain. A stimulation trial is only considered successful if the following occurs: the patient agrees to proceed with the permanent implant and finds the feeling of paresthesia comfortable and has a pain reduction of ≥30% as measured by VAS or some reduction in pain as measured by VAS, along with improved function, and/or improved health-related quality of life, and/or a reduction in pain medications as assessed by the principal investigator. Given the lack of evidence of the predictive value of a stimulation trial [24], we choose a trial cut off of 30% (rather than the conventional 50%) to enable a larger percentage of patients to progress to permanent implant. All SQS arm subjects who had successful trial stimulation, will be implanted with a neurostimulator (Medtronic, Inc., Minneapolis, MN, USA).. The final system implanted will consist of a Medtronic pulse generator (rechargeable or primary cell) attached either directly or via extension cable to two subcutaneous leads (quadripolar or octopolar). Patients should receive their permanent implant within 10 weeks of randomization. In the event that a patient does not proceed with the permanent implant, the patient will stay in the study and will be followed according the scheduled visits, unless the patient withdraws consent.

The following SQS-related equipment will be used in this study: The RestoreAdvanced®, PrimeAdvanced®, RestoreUltra®, and RestoreSensor® neurostimulators, 1 × 8 Standard and Quad Plus® leads (all Medtronic, Inc., Minneapolis, MN, USA)., and all current commercially available internal and external accessories approved for use for Peripheral Nerve Stimulation, and all future commercially available Medtronic neurostimulation devices, leads and accessories approved for use for Peripheral Nerve Stimulation.

Treatment switch criteria

The investigator criteria to inform patient treatment switch after 9 months post randomization or later are as follows: if <30% pain relief on VAS: switchover is normally allowed without any further justification; if 30% to 50% pain relief on VAS: switchover is normally allowed if the patient has another reason for not responding to randomized arm, such as: no perceived improvement in quality of life, disability or medication use and/or side effects from treatments; if >50% pain relief on VAS: switchover is normally not allowed.


Patients will be assessed prior to randomization (baseline) and at follow-up visits at 3, 6, 9, 12, 18, 24, 30 and 36 months post randomization. Assessments will require that patients visit the local investigational center and have their data collected via an electronic case report form. Table 3 provides a summary of the data collection process and timing.

Table 3 SubQStim study: summary of data collection

Primary outcome

The proportion of subjects with a ≥50% reduction in back pain intensity (VAS) from baseline to the 9 months post randomization. Patients will complete a pain diary, comprising a VAS scale, three times daily during the 7 days prior to their visit. The average VAS during that period will be calculated as the ratio between the sum of recorded VAS and the number of VAS measured. The percentage pain reduction will be calculated as 100*(VAS0-VASV)/VAS0, where VAS0 is the average VAS at baseline visit and VASv is the average VAS at subsequent visits.

Secondary outcomes

Secondary outcomes are: pain relief: ≥50% back pain relief at all visits in addition to 9 months, ≥30% back pain relief at all time points; pain intensity score: back and leg VAS score via patient diary at all time points; functional disability: Oswestry Disability Index (ODI) version 2 [24] at all time points; health-related quality of life: Short-Form 36 (SF-36) [25] and EQ-5D-5 L [26] at all time points; patient satisfaction (‘are you satisfied with the pain relief provided by your treatment?’ and ‘based on your experience so far, would you have agreed to this treatment?’) [7] at all follow-up time points; Patient Global Impression of Change (PGIC) [27] at all follow-up time points; healthcare utilization (HCU), that is, concomitant drug treatment for pain relief (opioid, non-steroidal anti-inflammatory drugs (NSAIDs), antidepressant drugs, anticonvulsants), need for physical therapy or other non-drug treatments) [28] at all time points; adverse events: both device-related and non-device-related adverse events and complications will be collected. The nature and frequency of events will be documented and an Adverse Events Committee will adjudicate all events.

Process measures

At the screening and baseline visits, the following additional information will be collected: patient demographics (for example, age, gender, duration of back pain), neuropathic pain severity (Douleur Neuropathique en 4 Questions (DN4)), [29] mood (Hospital Anxiety and Depression Scale (HADS)) [30] and level of previous healthcare utilization. Patients who proceed to device implantation will have the following information collected: back pain and paresthesia maps, radiographic images, parameter settings, lead location, and device implant information (that is, model, serial number). At subsequent visits, clinical and patient programmer data will be downloaded. All medical and alternative treatments received as optimized medical management will be recorded at each follow-up visit.

Unscheduled patient visits could occur between scheduled study follow-up visits for the following reasons: patient discontinuation from the study, device reprogramming and management of device-related complications, or revisions of non-device treatment.

Sample size and power calculations

A 20% difference in the primary outcome between the SQS and OMM arms is considered relevant. Assuming that 40% of the patients receiving OMM alone achieve the primary outcome, the study needs to recruit a total of 350 patients to detect a clinically important difference at the 5% alpha level and 90% power allowing for 20% attrition. However, it is expected that the difference between the two arms of the trial may be larger, that is, 25% or 30%. Two interim analyses are, therefore, planned at 140 and 220 evaluable patients (that is, with completed primary outcome) to provide 80% power in order to detect a 30% difference, and 85% power to detect a 25% difference (respectively), at 2-sided 1% alpha level. In order to ensure an overall alpha of two-sided 5%, the final analysis will be performed at two-sided 3% alpha [31]. In order to undertake 2 interim analyses and a final analysis, a total of 400 patients (N = 200 SQS arm and N = 200 OMM arm) will be required. These interim and final analyses are summarized in Table 4.

Table 4 SubQStim study: sample size and power calculations

Procedures to minimize bias

Computer generated random allocation schedules will be preprepared for each investigational center. The randomization schedule will be centrally held and allocation concealment will be maintained by an online database system that automatically assigns the patient to one of the two arms on confirmation by research nurse at the end of the baseline visit. The randomization schedules will be stratified to maintain a 1:1 balance between the treatment and control arm within each center and in the study as a whole. Patients will be randomized sequentially based upon randomization date and time.

Given the nature of both the intervention and control treatments, it is unfortunately not possible to blind either patients, or clinicians.

If a patient misses a study visit, the center’s study staff will make three attempts (one in writing and sent via a traceable method) to bring them in for a study visit. The numbers and reasons for dropouts and losses to follow-up will be reported by each arm of the study.

All study deviations (that is, an event where the investigator, or center personnel, did not conduct the study according to the Clinical Investigational Plan, Protocol, or Clinical Investigation Agreement) will be recorded and the reasons documented.

Data analysis

Statistical analysis

The intent-to-treat patient set (ITT) consists of all patients as they were randomized into the study. The per-treatment patient set (PT) consists of all patients of the ITT patient set for whom no major protocol deviation was reported. Patients who underwent a treatment switch, that is, who had initially been randomized to the OMM arm and switched to the SQS arm, or vice versa, will be included in this patient set. They will be analyzed according to treatment actually received.

The primary effectiveness analysis will be based on a between group comparison of primary and secondary outcomes up to, and including, the 9-month visit using the ITT patient data set [32]. For continuous outcomes, analytic models will be adjusted for baseline outcome score.

Sensitivity analyses will be undertaken using the same analytic models used in the primary analysis and based on the PT data set. In case of a discrepancy between the two analyses, a closer analysis of the data, of those patients from which the discrepancies result, will be performed. An additional sensitivity ‘modified ITT’ analysis will be performed for the primary outcome, considering patients randomized to the SQS arm but not definitively implanted as ‘failures’.

In phase II of the study (beyond 9-month visit) the analytic focus will be a within-person approach, that is, comparison of primary and secondary outcomes at follow-up, relative to baseline. In addition, the percentage of subjects who switched treatments after the 9-month follow-up visit, and the time to switchover, will be compared between OMM and SQS arms.

The study will seek to minimize missing data by conducting completeness checks on study data and patient questionnaires, with follow-up on any missing data. It is not possible to predict which will be the most effective method, therefore, we will undertake sensitivity analyses to examine different methods of missing data imputation, such as mean of nearby points (moving average), last value carried forward, doubly robust estimators or the best or the worst values that are not in favor of the SQS arm [33, 34].

The ‘safety patient set’ consists of all patients of the ITT dataset, who started any of the study procedures independent of the treatment they had been randomized to. Complications and adverse events will be reported descriptively.

All statistical tests will be interpreted at the two-sided α = 5% level and results reported as means and 95% confidence intervals. A more detailed exposition of study statistical analyses will be presented in a Statistical Analysis Plan to be completed prior to any data analysis.

Economic evaluation

Economic analysis alongside the RCT will estimate the cost effectiveness of SQS plus OMM versus OMM alone. The primary economic endpoints will be the cost per quality-adjusted life-years (QALYs) gained, and cost per additional unit of change in the primary outcome (that is, per unit change in pain VAS and change in proportion with ≥50% reduction in back pain intensity). Primary economic analyses will be at 9-month follow-up, with secondary analyses comparing costs over longer-term follow-up. Cost-effectiveness analyses will be undertaken using the perspective of a third party payer, for example, health service provider/payer perspective.

Within-trial data collection will inform estimates of intervention related resource, and resource use data will be combined with appropriate unit costs to estimate SQS intervention costs, in addition to OMM. Estimates of costs associated with other resource use will be informed by the HCU data collected within trial. Participant self-report data on EQ-5D-5 L [25] and SF-36 [26] will be combined with country specific tariffs to estimate health state values, and mean (and standard deviation) health state value for each arm at assessment point. The EQ-5D-5 L will be used as the primary outcome measure for health state values, with SF-36 (SF-6D, a utility score calculated from SF-36) used in sensitivity analyses. Health state values will be used to estimate QALY data over appropriate time periods. QALY data will be estimated using the area under the curve approach [35]. Comparison of costs, mean health state value, and QALY, over time will be adjusted for baseline value consistent with the statistical analysis plan.

Where analyses are conducted over a 12 month or longer time horizon, future costs and outcomes will be discounted at rates appropriate for country level analyses. Analyses of costs and outcomes will consider uncertainty in parameter estimates, assumptions (for example, device lifetime), and limitations with the data, using extensive sensitivity analyses. The net benefit statistic will be used to present cost-effectiveness acceptability curves and confidence intervals on cost effectiveness against a range of estimates of willingness to pay per additional unit of outcome (for example, cost per QALY threshold values) [36, 37].

Ethics and governance

Prior to enrolling subjects in this study, each investigation center’s Medical Ethical Committee will be required to approve the current study Clinical Investigation Plan and the Patient Information and Informed Consent Form. Any other written information to be provided to the subjects and, if applicable, any materials used to recruit subjects will also require ethical approval. Furthermore, such approval must be received in the form of a letter and provided to the study Sponsor (Medtronic Inc.) before commencement of the study at an investigation center.

At each center, investigators must obtain written informed consent prior to subjecting patients to any study related activity.

An independent Adverse Event Committee will review all adverse events. This Committee will consist of a minimum of three physicians independent of the Sponsor. The responsibilities of the Adverse Event Committee include, but are not limited to, the following: review all reported adverse events and their classification on a periodic basis; upon request, advise the Sponsor about the potential clinical impact of an observed, unintended device performance and cases of serious adverse device events.

Finally, clinical monitors, as a representative of the Sponsor, will visit the principal investigators and/or subinvestigators and study centers at periodic intervals to ensure compliance to the investigational plan and study agreements, adherence to current International Organization for Standardization, Declaration of Helsinki regulations and standard operational procedures, and check accuracy of study data.


RCTs have provided evidence to indicate spinal cord stimulation to be a clinically effective adjunct to medical management, and an alternative to a further operation for patients experiencing FBSS [7, 8]. Given this level I evidence, payers such as the National Institute for Health and Clinical Excellence (NICE) in the UK have recommended SCS as both a clinically and cost-effective therapy for the management of FBSS [3840].

Nevertheless, while chronic leg (or radicular) pain can be effectively treated with SCS, this therapy is not always sufficient for chronic back pain. The existing trials of spinal cord stimulation in patients with FBSS, recruited individuals who presented with predominant leg pain and excluded those with predominant back pain [7, 8].

Our systematic review identified 9 cases series studies of SQS in a total of 191 patients with chronic back pain. Importantly, these studies show that SQS implantation can result in clinically significant levels of pain relief in predominant back pain that is due to FBSS. The SubQStim study is the first RCT to assess the effectiveness and cost effectiveness of SQS in this patient population.

Trial status

The SubQStim trial began patient recruitment in November 2012. Recruitment is expected to close in late 2014. It is anticipated that primary endpoint findings will be available in approximately 2016.



Chronic back and leg pain


Conformité Européenne (European Conformity)


Douleur Neuropathique en 4 Questions


Failed back surgery syndrome


Hospital Anxiety and Depression Scale


Healthcare utilization


Intention to treat


Low back pain


Magnetic resonance


Oswestry Disability Index


Optimal medical management


Non-steroidal anti-inflammatory drugs


Patient Global Impression of Change


Per treatment


Randomized controlled trial


Short-Form 36


Subcutaneous nerve stimulation


Visual analog scale


World Health Organization.


  1. 1.

    Waddell G: The Back Pain Revolution. 1998, London, UK: Churchill Livingstone

    Google Scholar

  2. 2.

    Manca A, Eldabe S, Buchser E, Kumar K, Taylor RS: Relationship between health-related quality of life, pain, and functional disability in neuropathic pain: patients with failed back surgery syndrome. Value Health. 2010, 13: 95-102. 10.1111/j.1524-4733.2009.00588.x.

    Article  PubMed  Google Scholar

  3. 3.

    Doth A, Hansson PS, Jensen MP, Taylor RS: The burden of neuropathic pain: a systematic review and meta-analysis of health utilities. Pain. 2010, 149: 338-344. 10.1016/j.pain.2010.02.034.

    Article  PubMed  Google Scholar

  4. 4.

    Maniadakis N, Gray A: The economic burden of back pain in the UK. Pain. 2000, 84: 95-103. 10.1016/S0304-3959(99)00187-6.

    CAS  Article  PubMed  Google Scholar

  5. 5.

    North R, Shipley J, Prager J, Barolat G, Barulich M, Bedder M, Calodney A, Daniels A, Deer T, DeLeon O, Drees S, Fautdch M, Fehrenbach W, Hernandez J, Kloth D, Krames ES, Lubenow T, North R, Osenbach R, Panchal SJ, Sitzman T, Staats P, Tremmel J, Wetzel T, American Academy of Pain Medicine: Practice parameters for the use of spinal cord stimulation in the treatment of chronic neuropathic pain. Pain Med. 2007, 8 (Suppl 4): S200-S275.

    Article  PubMed  Google Scholar

  6. 6.

    Oakley JC: Spinal cord stimulation in axial low back pain: solving the dilemma. Pain Med. 2006, 7: C58-C63. 10.1111/j.1526-4637.2006.00123.x.

    Article  Google Scholar

  7. 7.

    Kumar K, Taylor RS, Jacques L, Eldabe S, Meglio M, Molet J, Thomson S, O'Callaghan J, Eisenberg E, Milbouw G, Buchser E, Fortini G, Richardson J, North RB: Spinal cord stimulation versus conventional medical management for neuropathic pain: a multicentre randomised controlled trial in patients with failed back surgery syndrome. Pain. 2007, 132: 179-188. 10.1016/j.pain.2007.07.028.

    Article  PubMed  Google Scholar

  8. 8.

    North RB, Kidd DH, Olin J, Sieracki JM, Farrokhi F, Petrucci L, Cutchis PN: Spinal cord stimulation for axial low back pain: a prospective, controlled trial comparing dual with single percutaneous electrodes. Spine. 2005, 30: 1412-1418. 10.1097/01.brs.0000166502.05449.a8.

    Article  PubMed  Google Scholar

  9. 9.

    Stanton-Hicks M, Panourias IG, Sakasb D, Slavinc KV: The future of peripheral nerve stimulation. Prog Neurol Surg. 2011, 24: 210-217.

    Article  PubMed  Google Scholar

  10. 10.

    Wall PD, Sweet WH: Temporary ablation of pain in man. Science. 1967, 155: 108-109. 10.1126/science.155.3758.108.

    CAS  Article  PubMed  Google Scholar

  11. 11.

    Levy RM: Differentiating the leaves from the branches in the tree of neuromodulation: the state of peripheral nerve field stimulation. Neuromodulation. 2011, 14: 201-205. 10.1111/j.1525-1403.2011.00359.x.

    Article  PubMed  Google Scholar

  12. 12.

    Campbell JN, Long DM: Peripheral nerve stimulation in the treatment of intractable pain. J Neurosurg. 1976, 45: 692-699. 10.3171/jns.1976.45.6.0692.

    CAS  Article  PubMed  Google Scholar

  13. 13.

    Paicius RM, Bernstein CA, Lempert-Cohen C: Peripheral nerve field stimulation for the treatment of low back pain: preliminary results of long-term follow-up: a case series. Neuromodulation. 2007, 10: 279-290. 10.1111/j.1525-1403.2007.00116.x.

    Article  PubMed  Google Scholar

  14. 14.

    Sator-Katzenschlager S, Fiala K, Kress HG, Kofler A, Neuhold J, Kloimstein H, Ilias W, Mozes-Balla EM, Pinter M, Loining N, Fuchs W, Heinze G, Likar R: Subcutaneous target stimulation (STS) in chronic noncancer pain: a nationwide retrospective study. Pain Pract. 2010, 10: 279-286. 10.1111/j.1533-2500.2009.00351.x.

    Article  PubMed  Google Scholar

  15. 15.

    Verrills P, Mitchell B, Vivian D, Sinclair C: Peripheral nerve stimulation: a treatment for chronic low back pain and failed back surgery syndrome?. Neuromodulation. 2009, 12: 68-75. 10.1111/j.1525-1403.2009.00191.x.

    Article  PubMed  Google Scholar

  16. 16.

    Falco FJ, Berger J, Vrable A, Onyewu O, Zhu J: Cross-talk: a new method for peripheral nerve stimulation. Pain Physician. 2009, 12: 965-983.

    PubMed  Google Scholar

  17. 17.

    Burgher AH, Huntoon MA, Turley TW, Doust MW, Stearns LJ: Subcutaneous peripheral nerve stimulation with inter-lead stimulation for axial neck and low back pain: case series and review of the literature. Neuromodulation. 2012, 15: 100-106. 10.1111/j.1525-1403.2011.00388.x.

    Article  PubMed  Google Scholar

  18. 18.

    Verrills P, Vivian D, Mitchell B, Barnard A: Peripheral nerve field stimulation for chronic pain: 100 cases and review of the literature. Pain Med. 2011, 12: 1395-1405. 10.1111/j.1526-4637.2011.01201.x.

    Article  PubMed  Google Scholar

  19. 19.

    Verrills P, Mitchell B, Vivian D, Sinclair C: Peripheral nerve field stimulation: is age an indicator of outcome?. Neuromodulation. 2009, 12: 60-67. 10.1111/j.1525-1403.2009.00190.x.

    Article  PubMed  Google Scholar

  20. 20.

    Yakovlev AE, Resch BE, Yakovleva VE: Peripheral nerve field stimulation in the treatment of postlaminectomy syndrome after multilevel spinal surgeries. Neuromodulation. 2011, 14: 534-538. 10.1111/j.1525-1403.2011.00387.x.

    Article  PubMed  Google Scholar

  21. 21.

    Dworkin RH, Turk DC, Wyrwich KW, Beaton D, Cleeland CS, Farrar JT, Haythornthwaite JA, Jensen MP, Kerns RD, Ader DN, Brandenburg N, Burke LB, Cella D, Chandler J, Cowan P, Dimitrova R, Dionne R, Hertz S, Jadad AR, Katz NP, Kehlet H, Kramer LD, Manning DC, McCormick C, McDermott MP, McQuay HJ, Patel S, Porter L, Quessy S, Rappaport BA: Interpreting the clinical importance of treatment outcomes in chronic pain clinical trials: IMMPACT recommendations. J Pain. 2008, 9: 105-121. 10.1016/j.jpain.2007.09.005.

    Article  PubMed  Google Scholar

  22. 22.

    Taylor RS, Buscher E, Van Buyten J-P: Spinal cord stimulation for chronic back and leg pain and failed back surgery syndrome: a systematic review and analysis of prognostic factors. Spine. 2005, 30: 152-160.

    Article  PubMed  Google Scholar

  23. 23.

    North R, Shipley J, Prager J, Barolat G, Barulich M, Bedder M, Calodney A, Daniels A, Deer T, DeLeon O, Drees S, Fautdch M, Fehrenbach W, Hernandez J, Kloth D, Krames ES, Lubenow T, North R, Osenbach R, Panchal SJ, Sitzman T, Staats P, Tremmel J, Wetzel T: Practice parameters for the use of spinal cord stimulation in the treatment of chronic neuropathic pain. Pain Med. 2007, 8 (Suppl 4): S200-S275.

    Article  PubMed  Google Scholar

  24. 24.

    Fairbank J, Pynsent P: The Oswestry disability index. Spine. 2000, 25: 2940-2953. 10.1097/00007632-200011150-00017.

    CAS  Article  PubMed  Google Scholar

  25. 25.

    McHorney CA, Ware JE, Raczek AE: The MOS 36-item Short-Form Health Survey (SF-36): II. Psychometric and clinical tests of validity in measuring physical and mental health constructs. Med Care. 1993, 31: 247-263. 10.1097/00005650-199303000-00006.

    CAS  Article  PubMed  Google Scholar

  26. 26.

    Herdman M, Gudex C, Lloyd A, Janssen M, Kind P, Parkin D, Bonsel G, Badia X: Development and preliminary testing of the new five-level version of EQ-5D (EQ-5D-5L). Qual Life Res. 2011, 20: 1727-1736. 10.1007/s11136-011-9903-x.

    CAS  Article  PubMed  PubMed Central  Google Scholar

  27. 27.

    Hurst H, Bolton J: Assessing the clinical significance of change scores recorded on subjective outcome measures. J Manipulative Physiol Ther. 2004, 27: 26-35. 10.1016/j.jmpt.2003.11.003.

    Article  PubMed  Google Scholar

  28. 28.

    Manca A, Kumar K, Taylor RS, Jacques L, Eldabe S, Meglio M, Molet J, Thomson S, O'Callaghan J, Eisenberg E, Milbouw G, Buchser E, Fortini G, Richardson J, Taylor RJ, Goeree R, Sculpher MJ: Quality of life, resource consumption and costs of spinal cord simulation versus conventional medical management in neuropathic pain patients with failed back surgery syndrome (PROCESS trial). Eur J Pain. 2008, 12: 1047-1058. 10.1016/j.ejpain.2008.01.014.

    Article  PubMed  Google Scholar

  29. 29.

    Bouhassira D, Attal N, Alchaar H, Boureau F, Brochet B, Bruxelle J, Cunin G, Fermanian J, Ginies P, Grun-Overdyking A, Jafari-Schluep H, Lantéri-Minet M, Laurent B, Mick G, Serrie A, Valade D, Vicaut E: Comparison of pain syndromes associated with nervous or somatic lesions and development of a new neuropathic pain diagnostic questionnaire (DN4). Pain. 2005, 114: 29-36. 10.1016/j.pain.2004.12.010.

    Article  PubMed  Google Scholar

  30. 30.

    Zigmond A, Snaith R: The hospital anxiety and depression scale. Acta Psych Scand. 1983, 67: 361-370. 10.1111/j.1600-0447.1983.tb09716.x.

    CAS  Article  Google Scholar

  31. 31.

    Bender R, Lange S: Adjusting for multiple testing - when and how?. J Clin Epidemiol. 2001, 54: 344-349.

    Article  Google Scholar

  32. 32.

    Schulz K, Altman DG, Moher D, CONSORT Group: CONSORT 2010 statement: updated guidelines for reporting parallel group randomized trials. Ann Intern Med. 2010, 152: 1-6. 10.7326/0003-4819-152-1-201001050-00179.

    Article  Google Scholar

  33. 33.

    White IR, Horton NJ, Carpenter J, Pocock SJ: Strategy for intention to treat analysis in randomised trials with missing outcome data. BMJ. 2011, 342: d40-10.1136/bmj.d40.

    Article  PubMed  PubMed Central  Google Scholar

  34. 34.

    Bang H, Robins J: Doubly robust estimation in missing data and causal inference models. Biometrics. 2005, 61: 962-972. 10.1111/j.1541-0420.2005.00377.x.

    Article  PubMed  Google Scholar

  35. 35.

    Brazier J, Ratcliffe J, Salomon JA, Tsuchiya A: Measuring and Valuing Health Benefits for Economic Evaluation. 2007, Oxford, UK: Oxford University Press

    Google Scholar

  36. 36.

    Hoch JS, Briggs AH, Willan AR: Something old, something new, something borrowed something blue: a framework for the marriage of health econometrics and cost-effectiveness analysis. Health Econ. 2002, 11: 415-430. 10.1002/hec.678.

    Article  PubMed  Google Scholar

  37. 37.

    Van Hout BA, Al MJ, Gordon GS, Ruten FFH: Costs, effects and C/E-ratios alongside a clinical-trial. Health Econ. 1994, 3: 309-319. 10.1002/hec.4730030505.

    CAS  Article  PubMed  Google Scholar

  38. 38.

    National Institute for Health and Clinical Excellence (NICE): Spinal Cord Stimulation for Chronic Pain of Neuropathic or Ischaemic Origin. 2008, London, UK: National Institute for Health and Clinical Excellence

    Google Scholar

  39. 39.

    Simpson EL, Duenas A, Holmes MW, Papaioannou D, Chilcott J: Spinal cord stimulation for chronic pain of neuropathic or ischaemic origin: systematic review and economic evaluation. Health Technol Assess. 2009, 13: 1-154.

    Google Scholar

  40. 40.

    Taylor RS, Ryan J, O'Donnell R, Eldabe S, Kumar K, North RB: The cost-effectiveness of spinal cord stimulation in the treatment of failed back surgery syndrome. Clin J Pain. 2010, 26: 463-469. 10.1097/AJP.0b013e3181daccec.

    Article  PubMed  Google Scholar

Download references


The study is funded by Medtronic Inc. Aptiv Solutions provide trial support. Rebecca Taylor (consultant researcher, Honiton, Devon, EX14 3JJ, UK) acted as the second reviewer for the SQS systematic review.

Author information



Corresponding author

Correspondence to Rod S Taylor.

Additional information

Competing interests

SE, CG, MK, WP and RST have received consultancy fees from Medtronic. KW is a full-time employee of Medtronic.

Authors’ contributions

SE is the overall study principal investigator. All authors are member of the SubQStim Trial Steering Committee and have participated in the study conception and design. All authors contributed to the writing of the study protocol and the drafting and editing of this manuscript. All authors read and approved the final manuscript.

Electronic supplementary material

Figure S1.

Additional file 1: Systematic review: summary of study selection. Table S1. Systematic review: quality assessment. (DOCX 57 KB)
